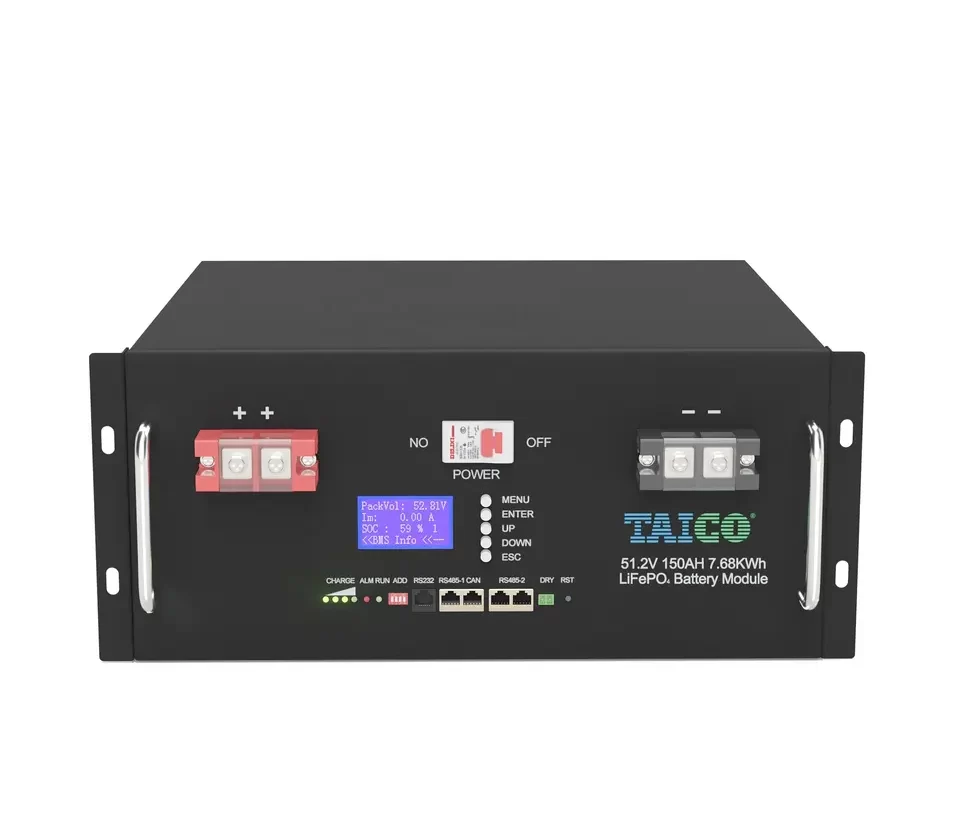

Taico 48V LiFePO4 Lithium Ion Battery Range
Introducing the Taico 48V LiFePO4 Lithium Ion Battery series, an advanced power solution designed to meet the diverse energy needs of modern applications. Whether you’re setting up a residential solar system, upgrading your RV power system, or seeking reliable energy storage for industrial use, Taico offers a robust and versatile range of batteries to suit your requirements.
Advanced LiFePO4 Technology:
At the heart of each Taico battery is Lithium Iron Phosphate (LiFePO4) technology, renowned for its safety, longevity, and performance. These batteries provide a stable power source, with a wide operation voltage range and a high maximum charging voltage, ensuring efficient energy storage and retrieval.
Model Variants for Every Need:
- TK2400: Perfect for small solar setups and low-power applications, offering 2.4KWh of energy storage.
- TK5000: Ideal for medium-sized solar systems or as backup power for homes, providing 5.12KWh.
- TK7200: A great choice for larger residential systems or small commercial installations, with 7.68KWh storage.
- TK9600: Designed for extensive energy needs, suitable for commercial and industrial applications, offering 10.24KWh.
- TK12000: The ultimate solution for high-demand systems, providing a massive 12.80KWh of energy storage.
Performance and Durability:
Each model in the Taico series boasts impressive performance specs, including a maximum charging and discharging current of 100A and a maximum power output ranging from 2400W to 12800W. With a lifetime of 10 years and up to 6000 cycles at 80% depth of discharge (DOD), these batteries are built to last and deliver consistent performance over time.
Safety and Certification:
Safety is a top priority for Taico, and each battery meets stringent standards, including UL1642, IEC62619, UN38.3, ROHS, and CE-EMC. The IP65 enclosure rating ensures protection against dust ingress and low-pressure water jets, making these batteries suitable for various environments.
Convenient and User-friendly:
The Taico batteries come in a range of sizes and weights to accommodate different installation requirements. Their compact design and robust build quality make them easy to integrate into existing systems. The operation temperature range of -20°C to 60°C ensures reliability in diverse climates.
Product Specifications:
- Nominal Voltage: 48V across all models
- Capacity Options: From 50Ah to 250Ah
- Energy Storage: Ranges from 2.4KWH to 12.80KWH
- Lifetime & Cycles: 10 years, 6000 cycles at 80% DOD
- Operation Temperature: -20°C to 60°C
- Protection: IP65 rated for environmental resistance
Choose Taico 48V LiFePO4 Lithium Ion Batteries for your next project and experience the pinnacle of energy storage technology. Whether for home, RV, or industrial use, Taico has the power to drive your success.
|
Model No
|
TK2400
|
TK5000
|
TK7200
|
TK9600
|
TK12000
|
|
Voltage
|
48 V
|
48 V
|
48 V
|
48 V
|
48 V
|
|
Capacity
|
50Ah
|
100Ah
|
150Ah
|
200Ah
|
250Ah
|
|
Energy
|
2.4KWH
|
5.12KWH
|
7.68KWH
|
10.24KWH
|
12.80KWH
|
|
Operation voltage
|
35.25-54.75 Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
|
Max. charging voltage
|
54.75Vdc
|
58.4 Vdc
|
58.4 Vdc
|
58.4 Vdc
|
58.4 Vdc
|
|
Max. charging and discharging current
|
50A
|
100A
|
100A
|
100A
|
100A
|
|
Max Power
|
2400W
|
5120W
|
7680W
|
10240W
|
12800W
|
|
Lifetime(25°C)
|
10 years
|
||||
|
Life cycles(80% DOD, 25°C)
|
6000 Cycles
|
||||
|
Storage time/temperature
|
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
|
||||
|
Operation temperature
|
-20°C to 60°C @60+/-25% Relative Humidity
|
||||
|
Storage temperature
|
0°C to 45°C @60+/-25% Relative Humidity
|
||||
|
Lithium Battery Standard
|
UL1642, IEC62619, UN38.3, ROHS,CE-EMC
|
||||
|
Enclosure protection rating
|
IP65
|
||||
|
Dimensions(L×W×H)mm
|
482*410*89
|
482*400*177
|
482*430*222
|
482*500*280
|
482*500*280
|
|
Weight
|
24KG
|
43KG
|
65KG
|
82KG
|
100KG
|
